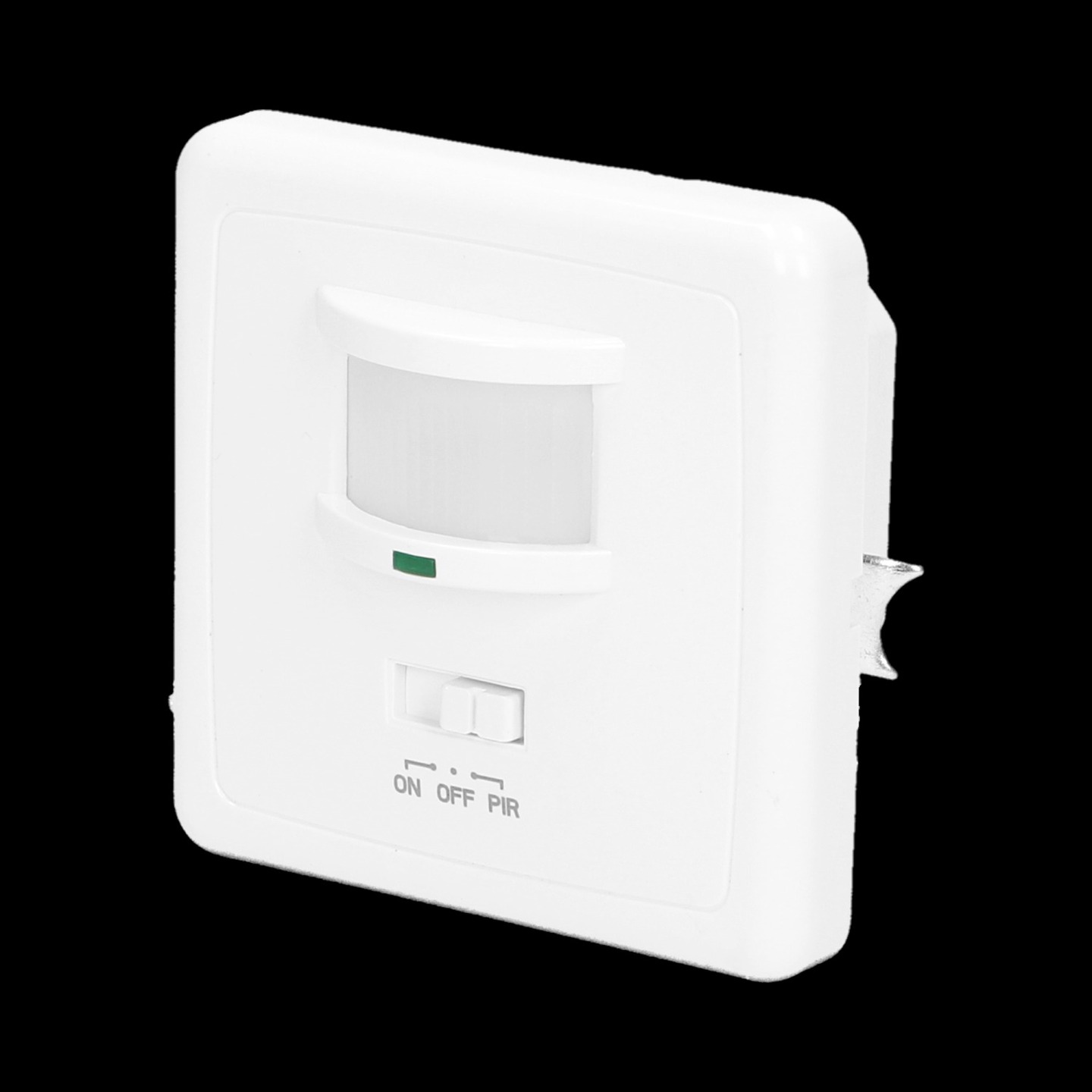

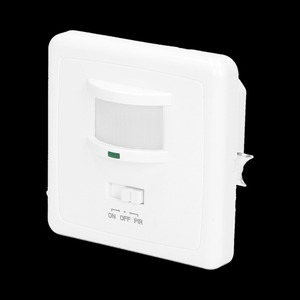

PIR motion sensor 160°
- Category
- Motion Sensor PIR
- Code
- OR-CR-205
- Manufacturer
- Orno
| Max load | 1200 |
| Max load of the LED light source | 300 W |
| Degree of protection (IP) | 20 |
| Relay output | Yes |
| Nominal voltage | 230V~, 50Hz |
| Presence detector | No |
| Colour | white |
| Installation | flush mounting |
| Dimensions of the sensor - width (mm) | 75 mm |
| Dimensions of the sensor - height (mm) | 75 mm |
| Dimensions of the sensor - depth (mm) | 50 mm |
| Working temperature | -20℃~+40℃ |
| Detection angle | 160° |
| Dimensions of the mounting hole | Ø60 mm |
| Type of sensor | Infrared |
| Detection range | 9 m |
| Adjustable daylight sensor (LUX) | Yes |
| Daylight sensor adjustment range (LUX) | <3—2000lux |
| Adjustable time setting (TIME) | Yes |
| Lighting time adjustment range (TIME) | min: 10 sek. ± 3 sek.; max: 7 min. ± 2 min. |
| Adjustment of motion detection range (SENS) | No |
