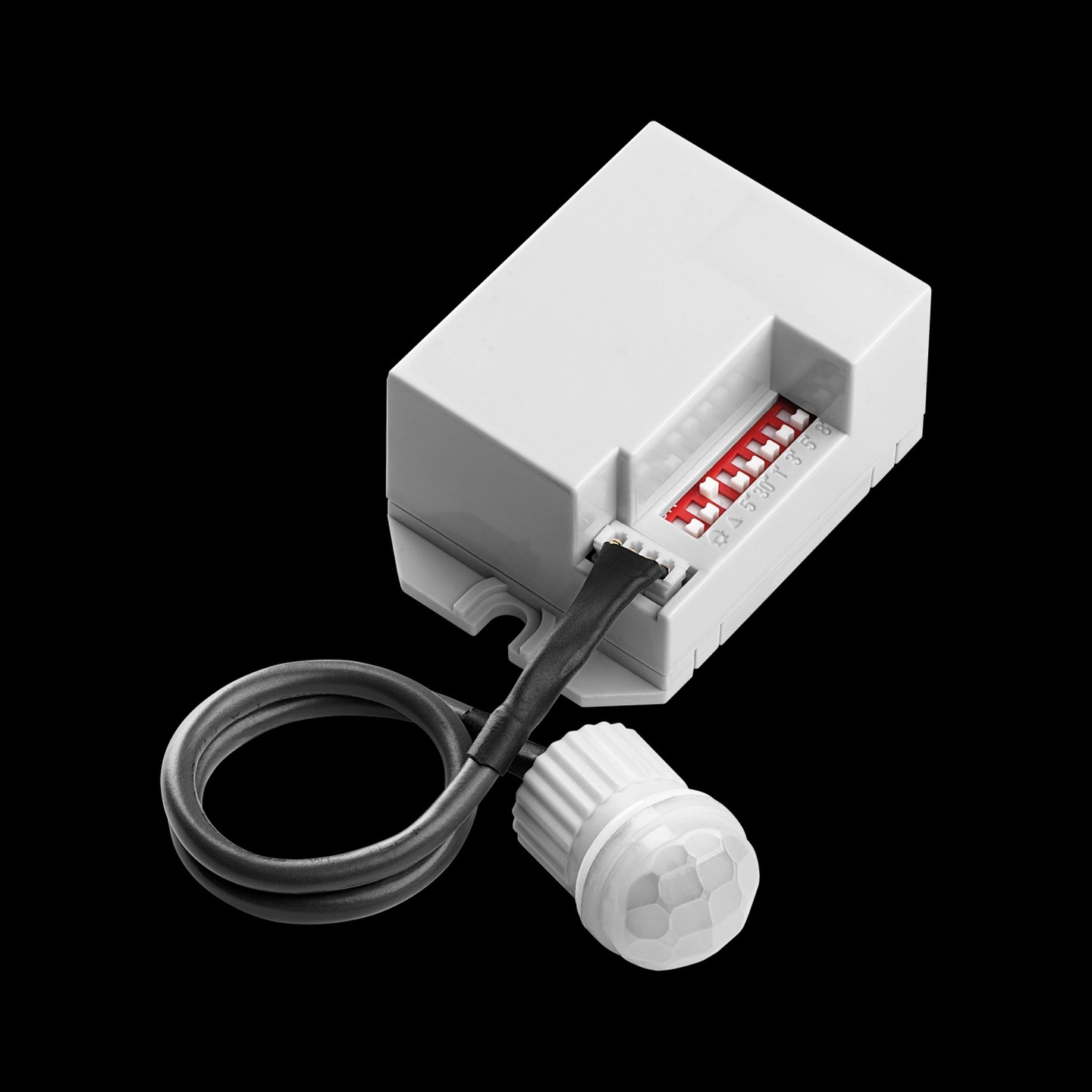

PIR motion sensor 360° with external probe
- Category
- Motion Sensor PIR
- Code
- OR-CR-211
- Manufacturer
- Orno
| Max load | 800 |
| Max load of the LED light source | 200 W |
| Degree of protection (IP) | 20 |
| Relay output | Yes |
| Nominal voltage | 230V~, 50Hz |
| Presence detector | No |
| Colour | white |
| Installation | surface mounting |
| Dimensions of the sensor - width (mm) | 26 mm |
| Dimensions of the sensor - height (mm) | 37 mm |
| Dimensions of the sensor - depth (mm) | 56 mm |
| Working temperature | -20℃~+40℃ |
| Detection angle | 360° |
| Dimensions of the mounting hole | Ø12 mm |
| Type of sensor | Infrared |
| Detection range | Ø3 or Ø6 m |
| Adjustable daylight sensor (LUX) | Yes |
| Daylight sensor adjustment range (LUX) | 10lux or 2000lux |
| Adjustable time setting (TIME) | Yes |
| Lighting time adjustment range (TIME) | 5 sek., 30 sek., 1 min., 3 min., 5 min., 8 min. |
| Adjustment of motion detection range (SENS) | Yes |
